The Research Lab benchtop MRI system brings the full power of a complete MRI system right to your desktop.

State of the art electonics paired with a high performance permanent magnet allows you to develop MR sequences and hardware directly at your workplace.

Use our open MATLAB interface to control the spectrometer direcly out of MATLAB.

  • up to 100 MHz
  • built-in amplifiers
  • 0.55 Tesla permanent magnet
Get in touch

Overview

Realistic MRI Training – Anytime, Anywhere

TThe Research Lab benchtop MRI system brings the full power of a complete MRI system right to your desktop.

State of the art electonics paired with a high performance permanent magnet allows you to develop MR sequences and hardware directly at your workplace.

Use our open MATLAB interface to control the spectrometer direcly out of MATLAB.

  • up to 100 MHz
  • built-in amplifiers
  • 0.55 Tesla permanent magnet
  • open MATLAB interface
  • easy to set up and operate
  • integrated network analyzer
Get in touch

Downloads

Hardware

Cutting-Edge Hardware for
Hands-On MRI Training

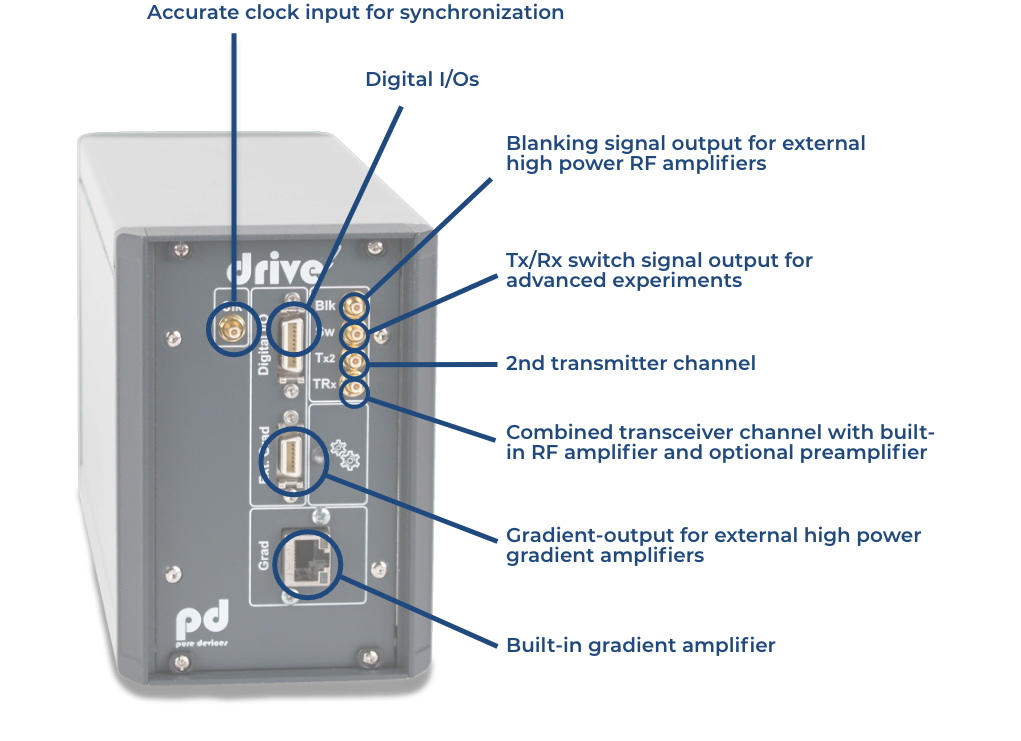

Control Unit Drive – L

  • high performance 3D imaging
  • built-in high power gradient and RF amplifiers
  • standardized outputs for external gradient and RF amplifiers
  • blanking and RF-switching signal outputs
  • external trigger inputs
  • digital inputs and outputs
  • frequency range 0 to 100 Mhz
  • accurate clock input for synchronization
  • USB 2.0

For detailed specifications please download the specs pdf document.

openMATLAB® interface

control directly out of MATLAB®

  • complete control out of MATLAB®
  • push-button experiments
  • including source code
  • real time network analyzer
  • mode for RF-coil development
  • no timing restrictions
  • up to 512 RF pulses per rep. time
  • up to 512 AQ windows per rep. time
  • arbitrary gradient shapes
  • TX/RX with multiple frequencies/phases
  • use MATLAB for data analysis
  • real time feedback
Field strength~ 550 mT
Gradient strength (built-in gradient amplifier)250 mT/m (x,y) | 350 mT/m (z-direction)
Gradient strength (external DC-600 gradient amplifier)1200 mT/m (x,y) | 1500 mT/m (z-direction)
Gradient efficiency250 mT/m/A (x,y) | 330 mT/m/A (z-direction)
Sample diamter imaging10 mm
Field homogeneity (10 mm)< 10 ppm
Sample diamter spectroscopy5 mm
Field homogeneity (5 mm)< 3 ppm
Spectral resolution (5 mm)< 1 ppm
Connection of the imaging unitRj45
Connection of the receiver/transmitter unitBNC
Dimensions (length x width x heigt)27 cm x 25 cm x 14 cm
Weight20.5 kg

Transport Case

Best protection for your MRI system

compartments for magnet,
control unit and accessoires

  • tow-handle & wheels
  • aluminum rails, steel corners
  • large butterfly locks
  • lockable
  • 4 handles
  • weight: 10 kg
  • size: 65 cm x 36 cm x 29 cm
  • made in Germany

Software

openMATLAB® interface

Slice Select: For 3D imaging methods use ‘Slice Select GUI’ for simple slice orientation.
Sequence Plot: Use the power of MATLAB to plot, zoom and analyse our sequences.
GUIs for easy operation available – example: echo train
Network analyser included: Tune and match your coils directly out of MATLAB – no repluging required!
Plot your data with the powerful matlab figures – example: SpinEcho 0D
Write our own sequences directly in MATLAB.
Shaped RF pulses: Use our pre-defined RF-pulse-shapes or easily create your own shape.

Teaching Software

Top features

  • real time feedback
  • complete control out of MATLAB®
  • push-button experiments incl. source code
  • real time network analyzer mode
  • no timing restrictions
  • arbitrary gradients
  • TX/RX with multiple frequencies/phases
  • use MATLAB® for data analysis


Available pulse programs:

  • Default imaging: Spin Echo, (segmented) Turbo Spin Echo,
    SPI/CSI, Gradient Echo, EPI, Zero Echo Time (ZTE), …
  • Imaging with preparation: Spatially resolved T1, T2, or T2* maps, Diffusion Weighted Imaging (DWI), Elastography, Velocity/Flow, …
  • Relaxometry: T1 and 12 measurements,
  • T1-2 or T1p-T2 correlation maps, T2-T2 exchange maps, …
    (some measurements might require additional hardware)

Workbook & Lessons

Tutorial Video

Write a SpinEcho 2D using our openMATLAB interface

Watch now
