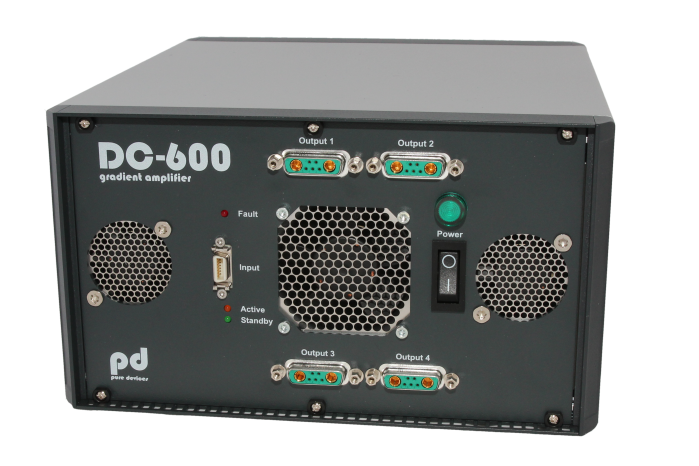

Gradient Amplifier DC-600

Use our high power gradient amplifier as extention to the “Research Lab” or expand our own setup.

Designed for high current and fast switching times, still small enough to fit on your desktop or workbench.

  • 4 current controlled channels
  • each 120 Watt (300 Watt peak)
  • ± 60 Volt / 5 Ampere
  • bandwith > 100 kHz
  • less than 6 kg weight
  • channels can be brigded
  • RF Amplifier RF-100
Get in touch

Specifications

No. of Channels4 (any combination of current or voltage controlled possible)
Current controlled option
Output Current / channel-5 A … 5 A
Output Voltage60 V
Setting time 10% 5 Ohm 1 A~ 5 µs
Setting time 1% 5 Ohm 1 A~ 10 µs
Setting time 1% 5 Ohm 2 A
y-Gradient of Magspec		~ 50 µs
Bandwidth> 100 kHz
Voltage controlled option
Output voltage-60 V … 60 V
Output current / channel-7 A … 7 A peak
Setting time 10% 5 Ohm 1 A< 2 µs
Setting time 1% 5 Ohm 1 A< 5 µs
Bandwidth> 500 kHz

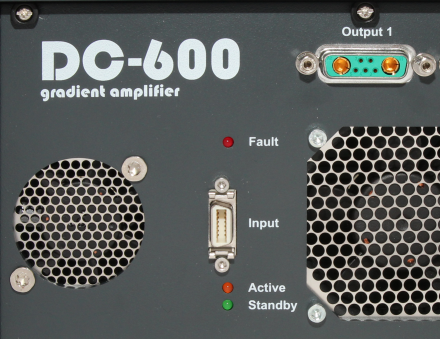

IOs

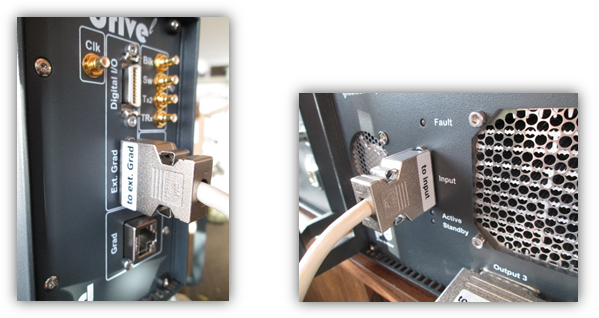

Input ports3M™ MDR 14 Pins (3M™10214-55G3PC)
Input signal+/-15 V single ended or differential
Output portD-Sub Mixed shell 7W2 female (HARTING 09 69 201 5072)
Output typeDifferential
LEDsPower, Standby, Active, Fault
Power

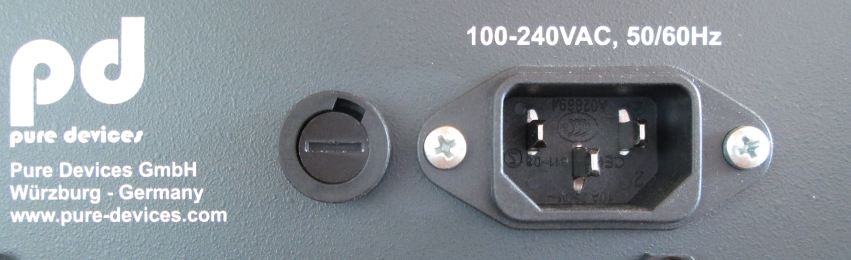

Power supply110 – 230 V
Internal power dissipation (Peak)per channel 120 W (400 W), all channels 300 W (1500 W)
Internal supply+/- 36 V 9 A buffer 2 x 12 mF
Size
Dimensions25 cm x 14 cm x 30 cm (19” Case Height 3 U x Width 42 HP x Depth 30 cm)
Weight5.3 kg
